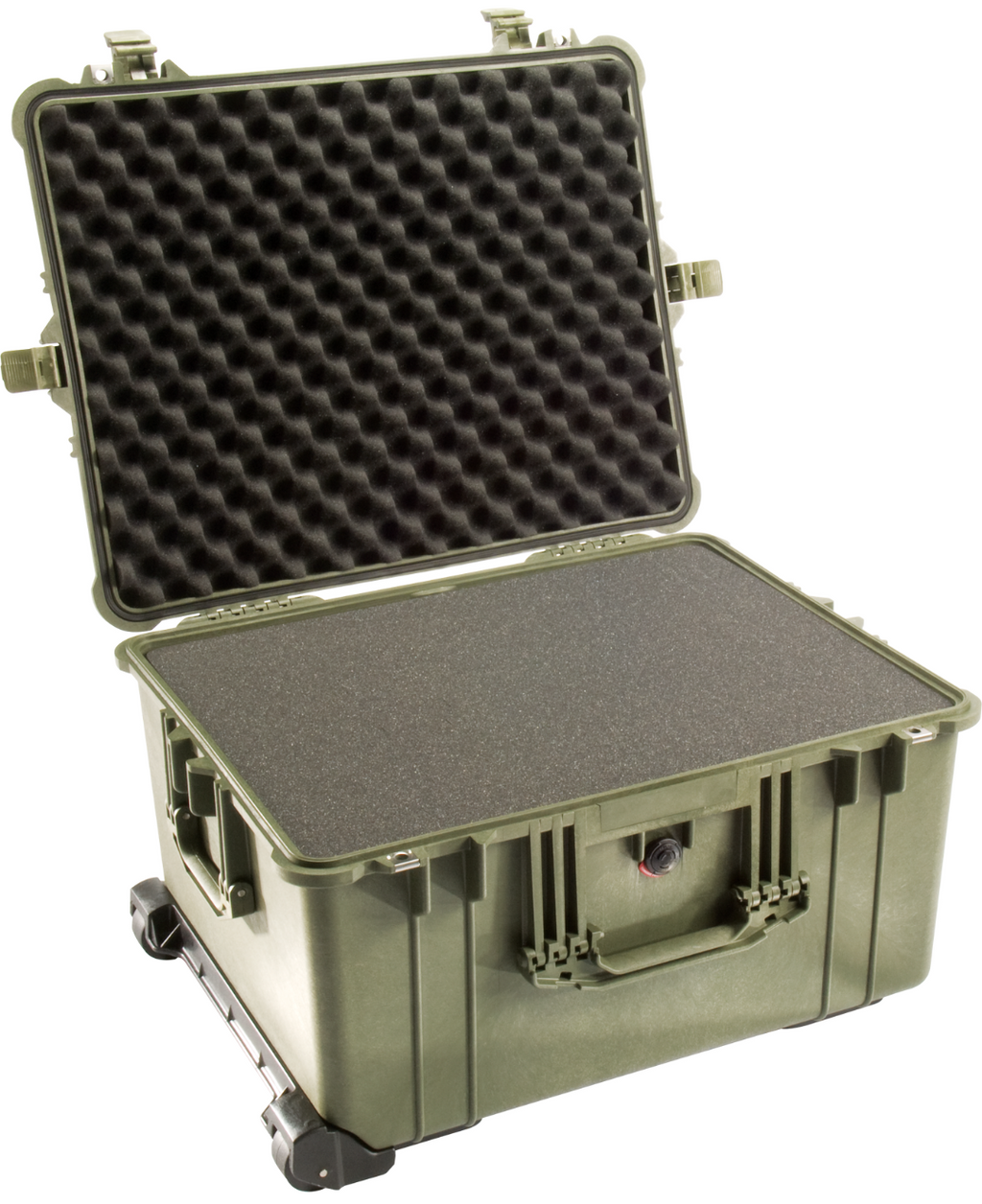

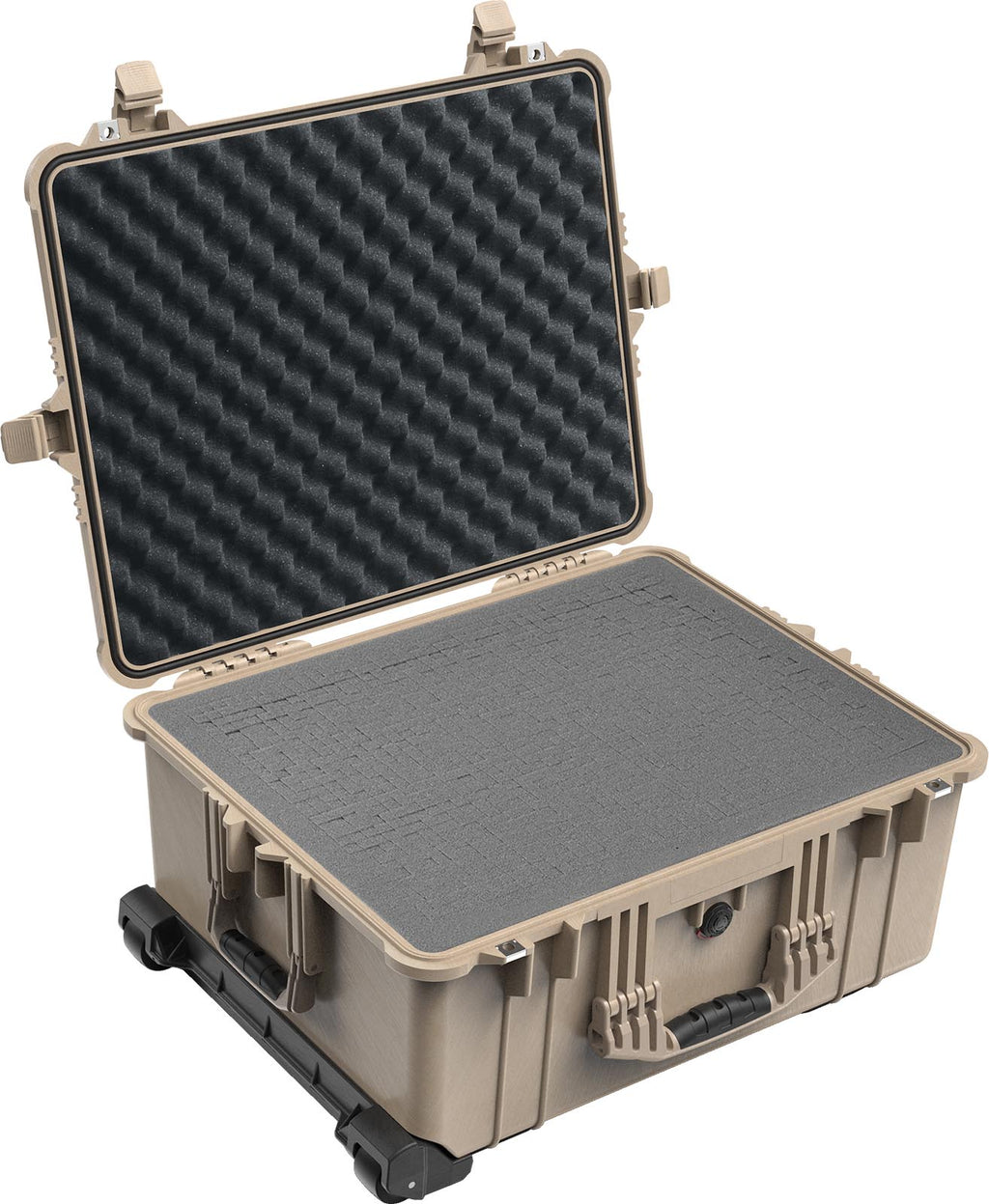

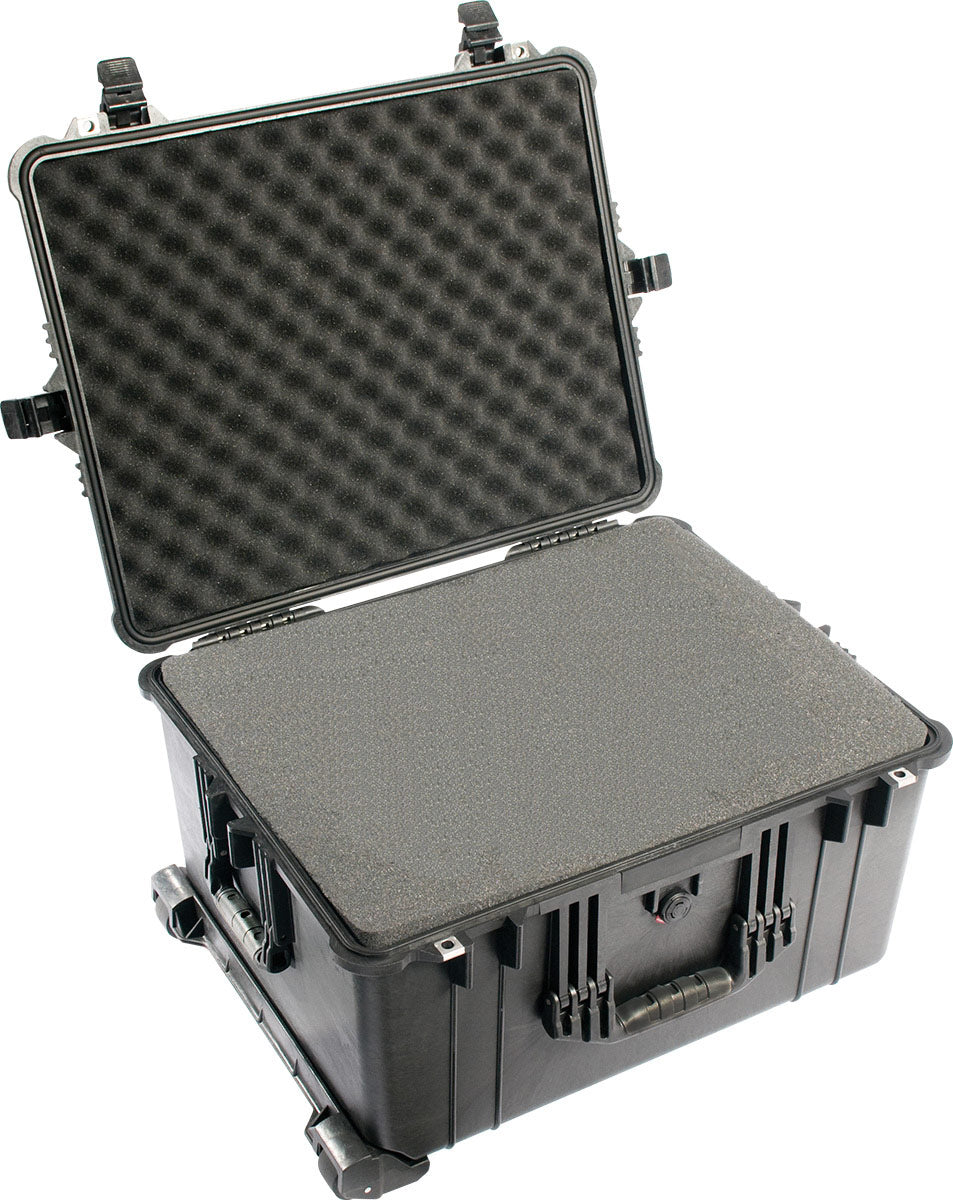

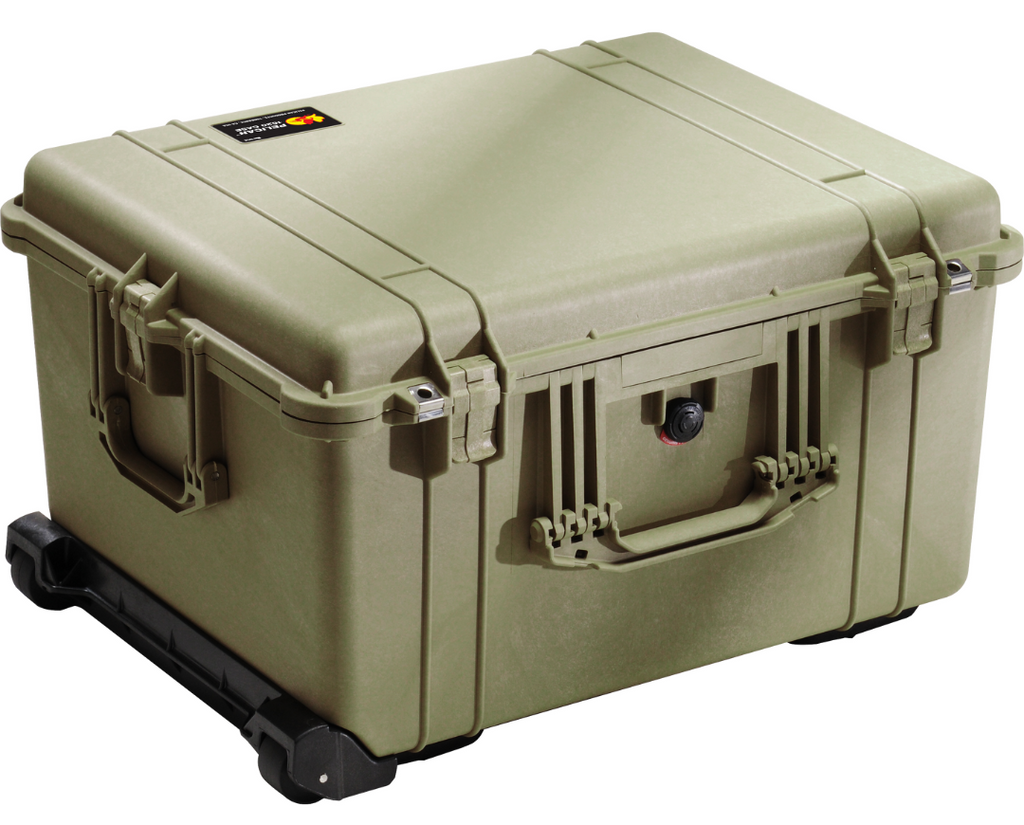

1620 Protector Case
1/7

1620 Protector Case

$319.95
MPN: 1620-021-110
Interior
Color

Protect your most critical equipment with the 1620 Protector Case—the trusted choice since 1976 for professionals operating in extreme conditions worldwide. Built to withstand arctic temperatures, combat environments, and everything in between, these American-made cases deliver uncompromising durability. Engineered with an automatic purge valve for pressure equalization, a watertight silicone O-ring seal, reinforced over-molded handles, and corrosion-resistant stainless steel hardware, the Pelican Protector Case keeps your gear secure and mission-ready in the harshest environments on earth.

Design & Features

  • 4 level Pick N Pluck™ with convoluted lid foam
  • Strong polyurethane wheels with stainless steel bearings
  • Watertight, crushproof, and dustproof
  • Open cell core with solid wall design - strong, light weight
  • Retractable extension trolley handle
  • Fold down handles
  • Easy open double-throw latches
  • Stainless steel hardware and padlock protectors
  • Automatic pressure equalization valve - balances interior pressure, keeps water out
  • O-ring seal
  • Personalized nameplate service available
  • Limited Lifetime Warranty

Need larger quantities or custom configurations? We offer bulk ordering and customization options through our CH Ellis team. Click below to request a quote and get a solution tailored to your needs.

Request Bulk Quote

SPECS

DIMENSIONS

Exterior (LxWxD): 24.76 x 19.57 x 13.9 Inches

Interior (LxWxD): 21.48 x 16.42 x 12.54 Inches

MEASUREMENTS

Lid Depth: 2.01 Inches

Bottom Depth: 10.53 Inches

WEIGHTS

Weight With Foam: 24.62 lbs

Weight Without Foam: 21.2 lbs

Buoyancy: 149.91 lbs

TEMPERATURES

Minimum Temperature: -40 °F

Maximum Temperature: 190 °F

MATERIALS

Body Material: Polypropylene

Latch Material: ABS

O-Ring Material: Polymer

Pins Material: Stainless Steel

Foam Material: 1.3 lb Polyurethane

Purge Body Material: ABS

Purge Vent Material: 3 Micron Hydrophobic Non-Woven

Purge O-Ring Material: 70 Shore Nitrile

APPROVALS

Wheels: 2

Certifications: IP67 / MIL C-4150J / Def Stan 81-41
