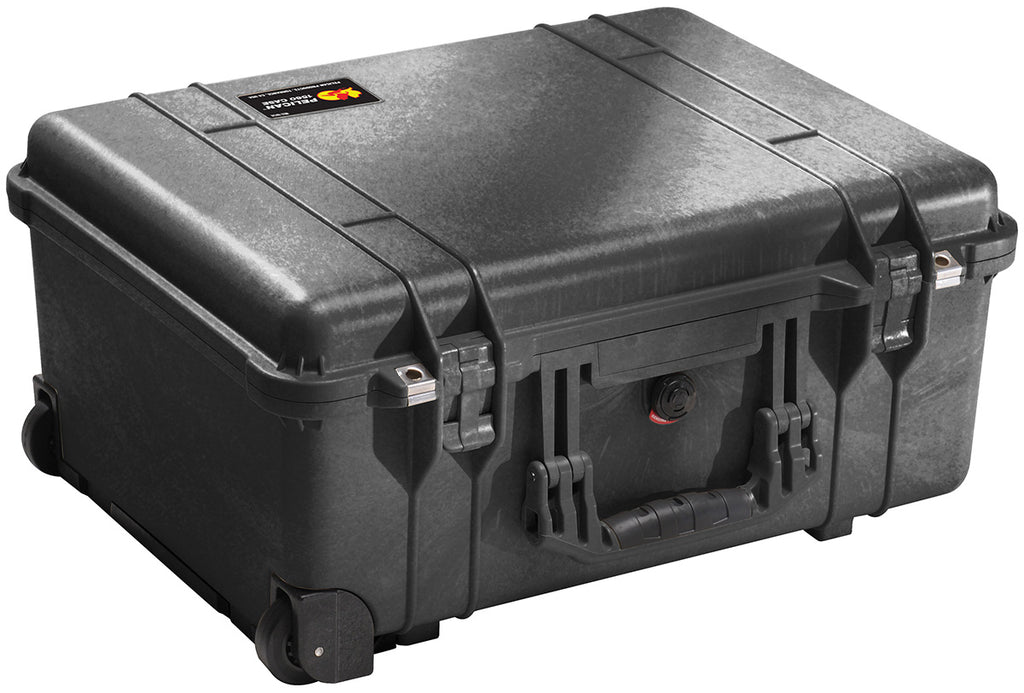

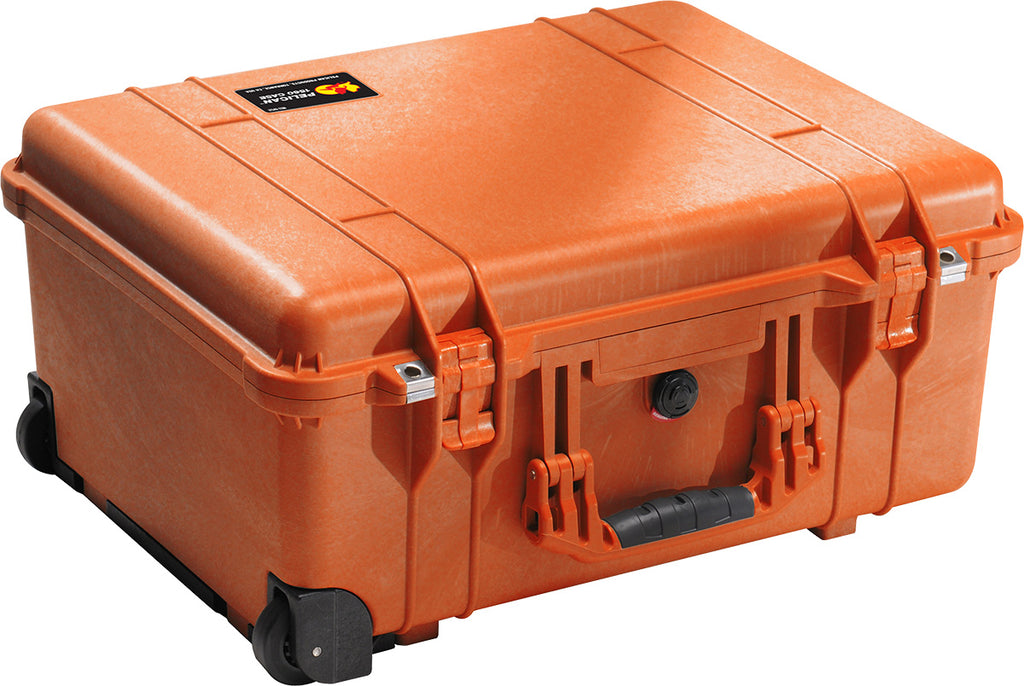

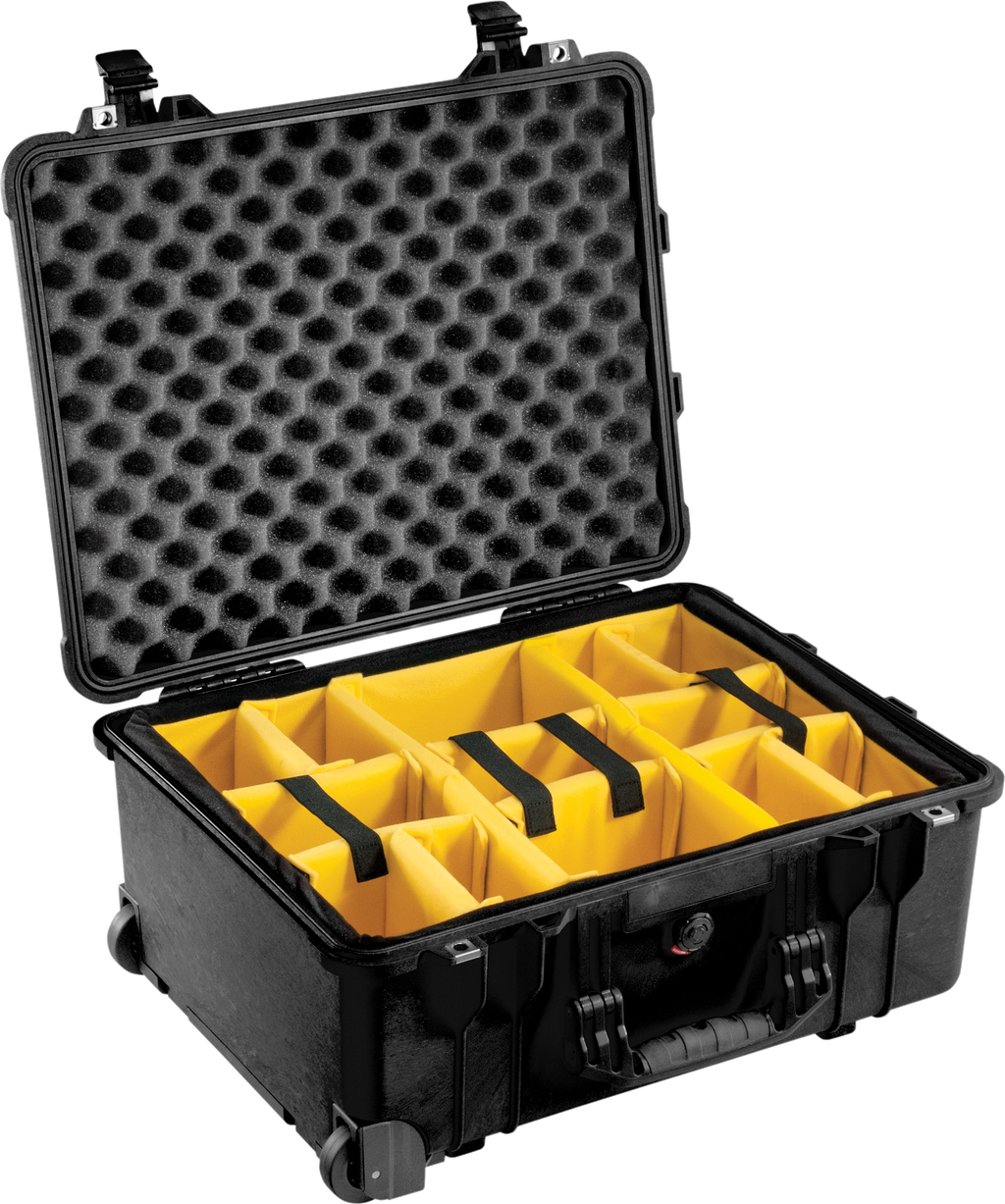

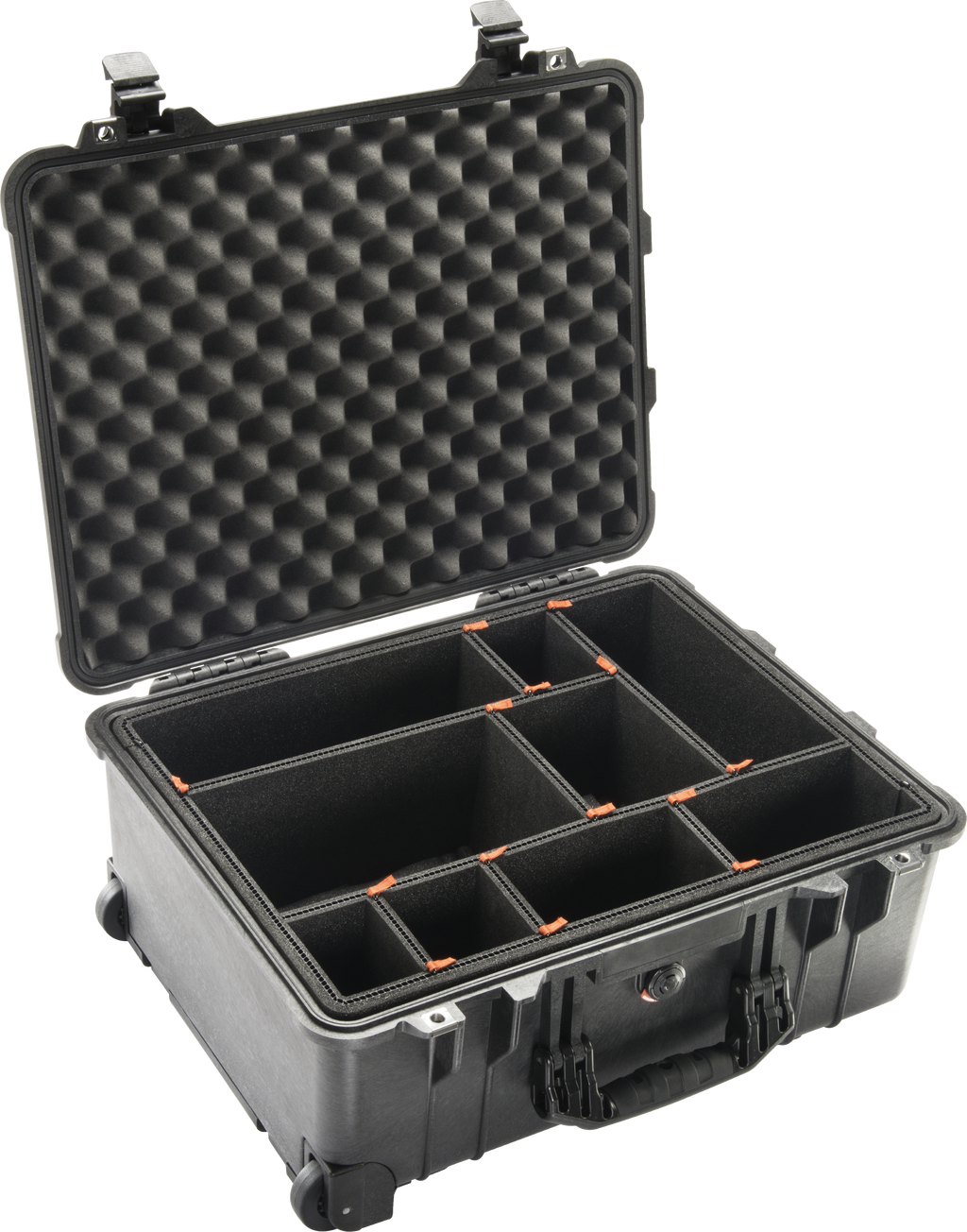

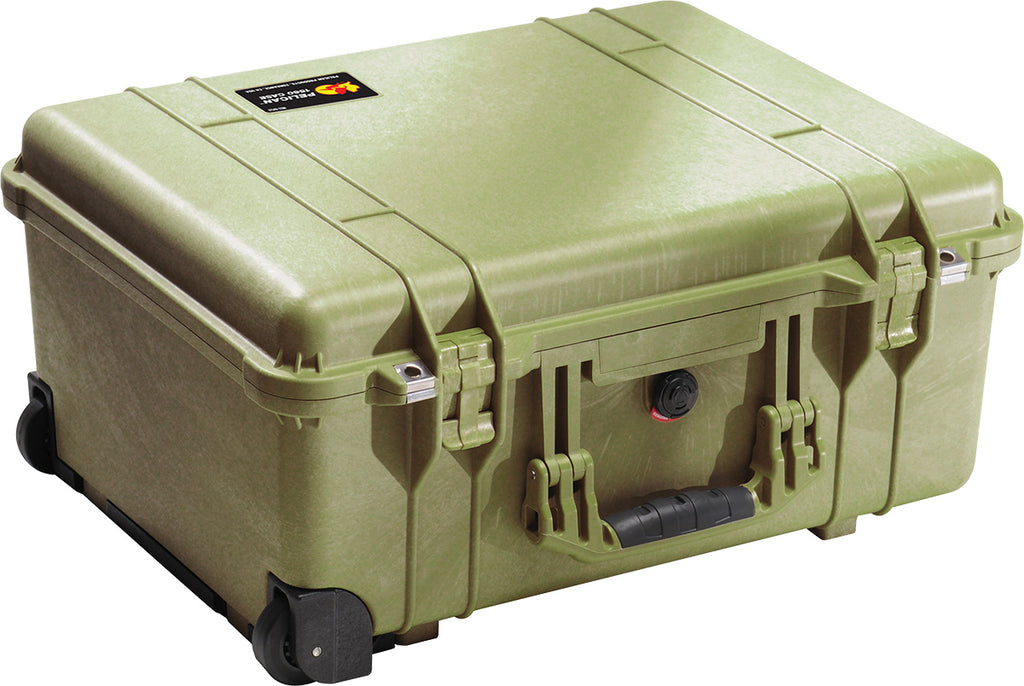

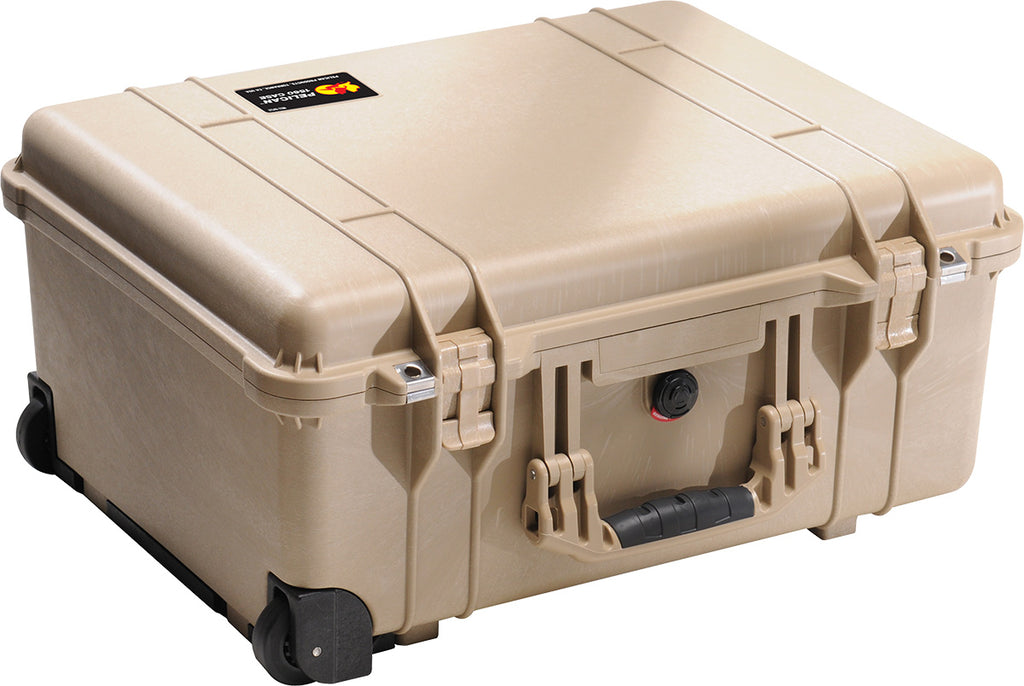

1560 Protector Case
1/12

1560 Protector Case

$249.95
MPN: 1560-001-110
Interior
Color

For over 45 years, Pelican™ Protector Cases have been the trusted choice for safeguarding sensitive equipment in the world's most demanding conditions. Built tough and engineered for extreme environments—from arctic cold to intense heat—these American-made cases deliver uncompromising protection. Each case features a precision-engineered automatic purge valve for pressure equalization, a watertight silicone O-ring seal, reinforced over-molded rubber handles, and corrosion-resistant stainless steel hardware. When your equipment's survival matters, Pelican sets the standard.

Design & Features

  • Watertight, crushproof, and dustproof

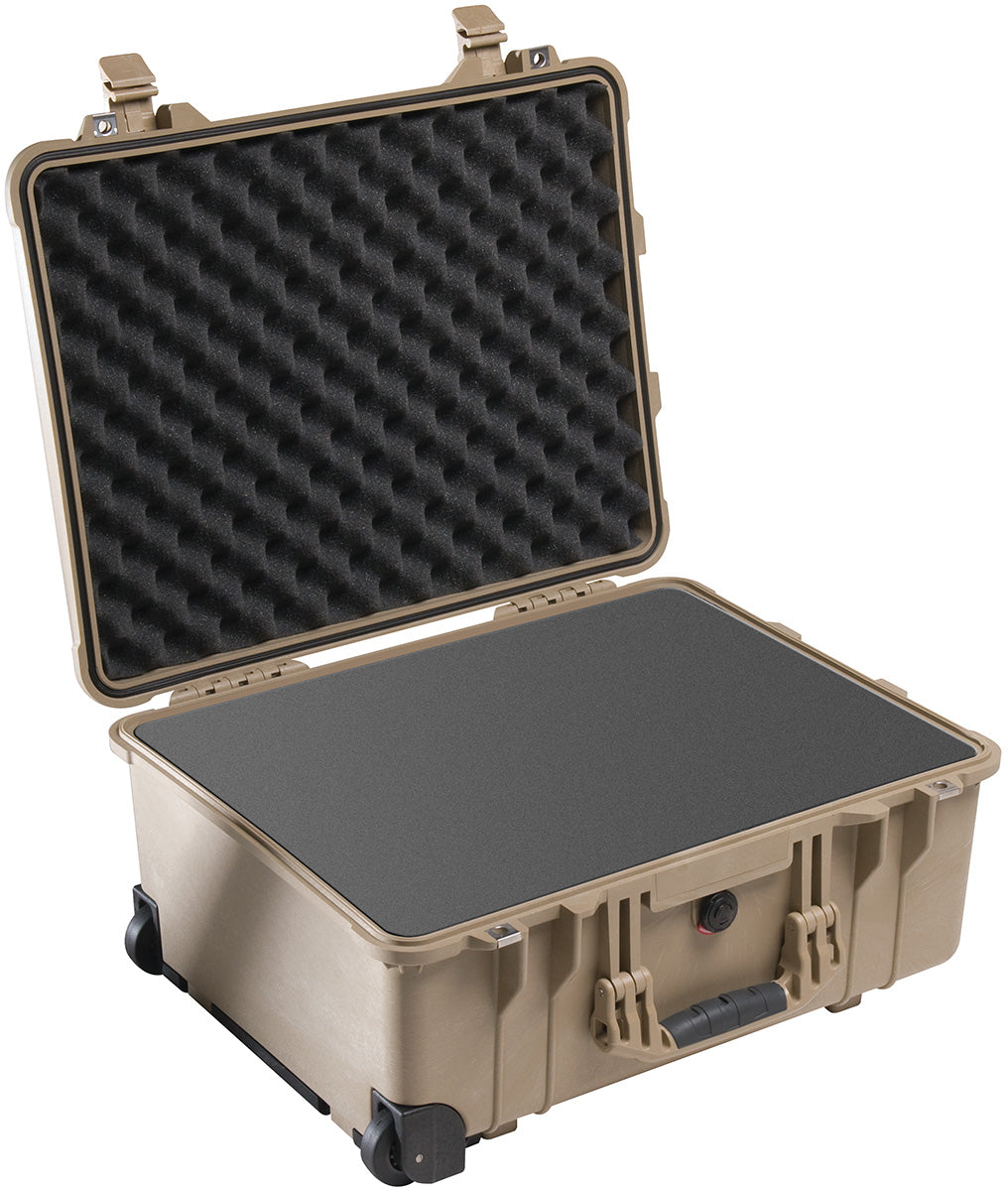

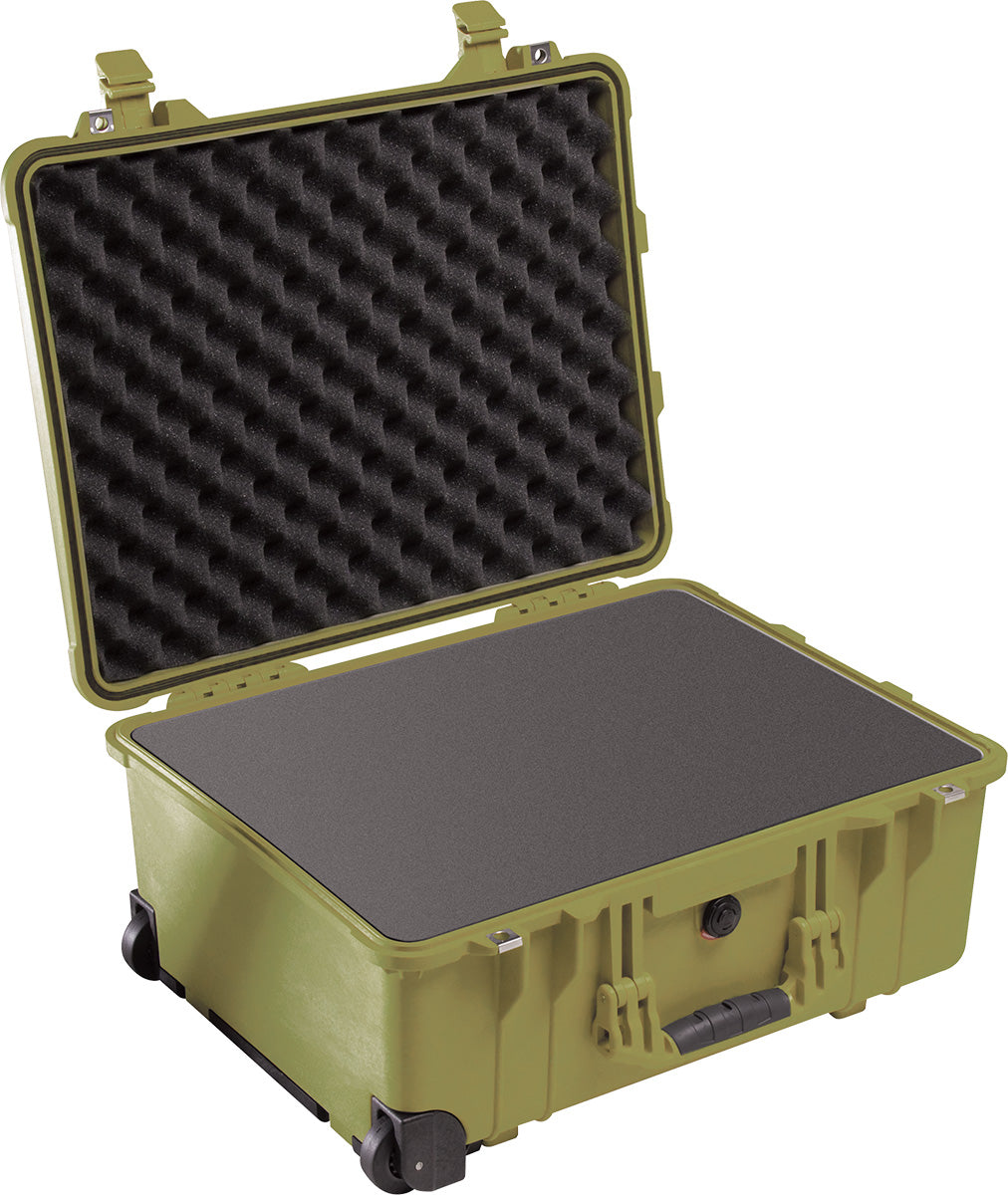

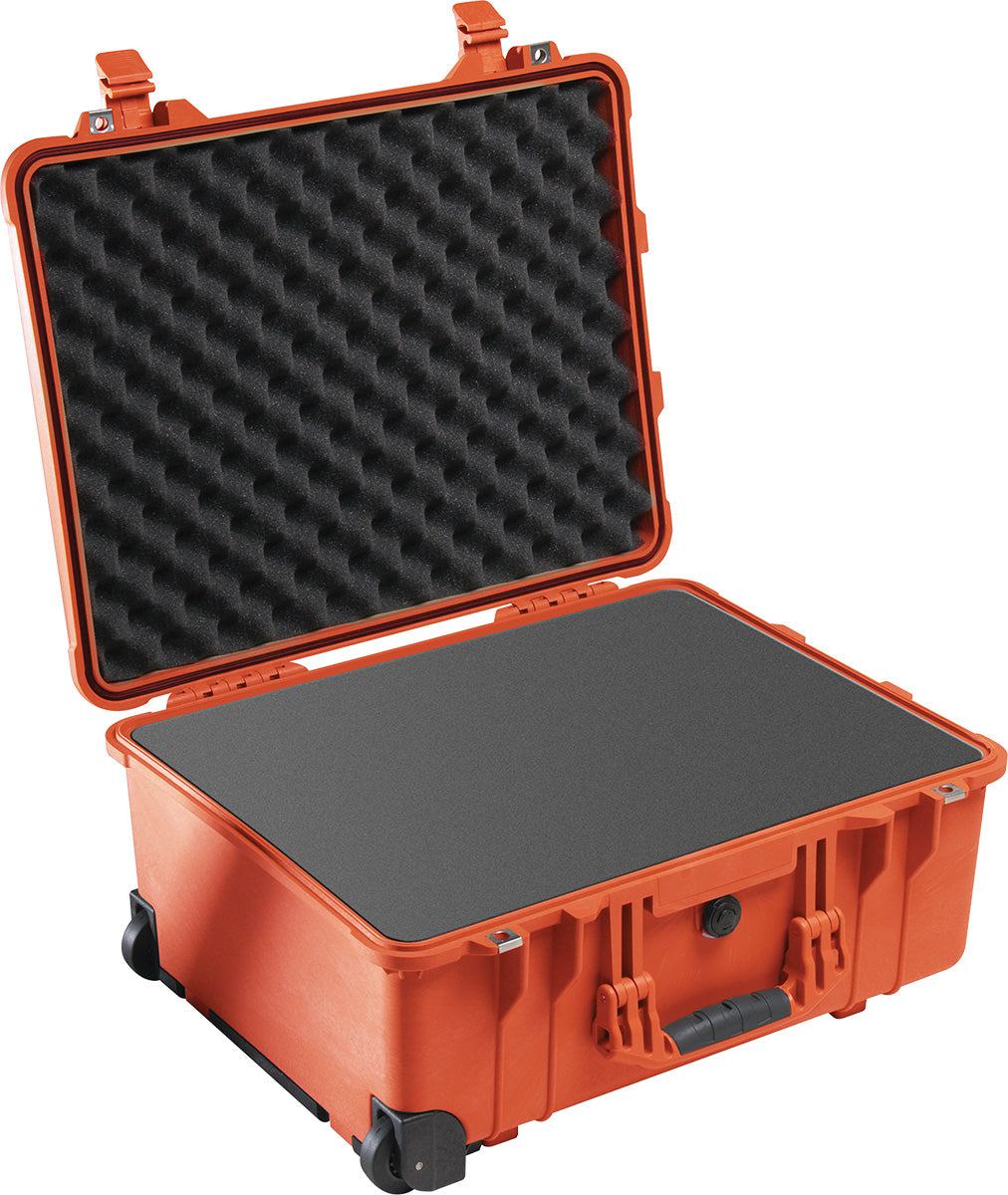

  • 2 level Pick N Pluck™ with convoluted lid foam
  • Strong polyurethane wheels with stainless steel bearings
  • Open cell core with solid wall design - strong, light weight
  • Retractable extension trolley handle
  • Easy open double-throw latches
  • Stainless steel hardware and padlock protectors
  • Peli's legendary lifetime guarantee**
  • Automatic pressure equalization valve - balances interior pressure, keeps water out
  • O-ring seal
  • * Where applicable by law
  • Comfortable rubber over-molded top and side handles
  • Lifetime Guarantee of Excellence

Need larger quantities or custom configurations? We offer bulk ordering and customization options through our CH Ellis team. Click below to request a quote and get a solution tailored to your needs.

Request Bulk Quote

SPECS

DIMENSIONS

Exterior (LxWxD): 22.07 x 17.92 x 10.42 Inches

Interior (LxWxD): 19.92 x 14.98 x 9 Inches

MEASUREMENTS

Lid Depth: 2 Inches

Bottom Depth: 7 Inches

WEIGHTS

Weight With Foam: 20 lbs

Weight Without Foam: 17 lbs

Buoyancy: 115 lbs

TEMPERATURES

Minimum Temperature: -40 °F

Maximum Temperature: 190 °F

MATERIALS

Body Material: Polypropylene

Latch Material: ABS

O-Ring Material: Polymer

Pins Material: Stainless Steel

Foam Material: 1.3 lb Polyurethane

Purge Body Material: ABS

Purge Vent Material: 3 Micron Hydrophobic Non-Woven

Purge O-Ring Material: 70 Shore Nitrile

APPROVALS

Wheels: 2

Certifications: IP67 / Def Stan 81-41
